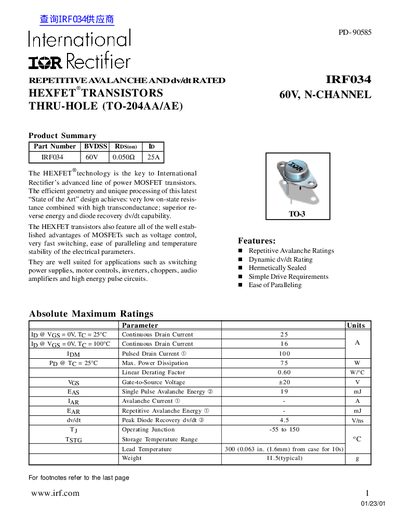

IRF034 is a N-channel MOSFET produced by International Rectifier. Its features are low on-state resistance, high transconductance, superior reverse energy and diode recovery dv/dt capability.
The IRF034 is a 60 V N‑channel power MOSFET designed for switching power supplies, motor controls, inverters, choppers, audio amplifiers and high‑energy pulse circuits. It offers very low on‑state resistance, high transconductance, and robust avalanche and dv/dt ratings.
Key specifications include a typical on‑state resistance of 0.050 Ω, continuous drain current of 25 A at 25 °C, and a maximum power dissipation of 75 W. The device is supplied in a TO‑204AE (modified TO‑3) package with detailed pin assignments and thermal characteristics for reliable design integration.
| Drain‑to‑Source Breakdown Voltage (VDS) | 60 V |
|---|---|
| Static On‑State Resistance (RDS(on)) | 0.050 Ω |
| Maximum Power Dissipation | 75 W |
| Total Gate Charge (Qg) | 21 nC |
| Junction‑to‑Case Thermal Resistance (RθJC) | 1.67 °C·W |
| Package | TO‑204AE (Modified TO‑3) |
The typical static on‑state resistance is 0.050 Ω measured at VGS = 10 V and Id = 16 A.
The device is supplied in a TO‑204AE (modified TO‑3) package.
