PCN11 series socket connector is a high reliability socket connector developed and manufactured by Siemens. The product complies with IEC603-2/DIN41612 standard and has 10, 16, 20, 32, 44, 50, 64, 90, 96, 100 and 128 contact options. Moreover, it adopts a reliable double-sided 2-point contact pin structure and is suitable for a wiring board with a thickness of 2.54mm or more.

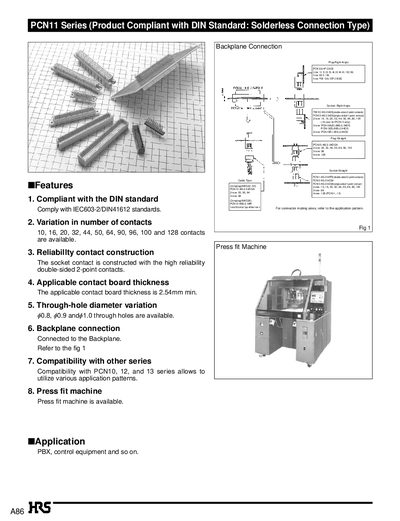

The PCN11 series from HRS provides DIN‑standard, solderless connection type connectors that comply with IEC603‑2/DIN41612. Available in a wide range of contact counts (10‑128) and compatible with PCN10, PCN12 and PCN13 series, the connectors feature double‑sided 2‑point contacts, gold‑plated contact areas and a minimum board thickness of 2.54 mm.
The datasheet lists electrical ratings such as 2 A current, -30 °C to +85 °C operating temperature, 10 MΩ insulation resistance at 100 V DC and 1000 V AC withstanding voltage. Mechanical data include a 2.54 mm contact pitch, board thickness options of 2.4 mm or 2.54 mm, and through‑hole diameters of 0.8 mm, 0.9 mm and 1.0 mm. Ordering information and part numbers for various housing and key‑header configurations are also provided.
| Current rating | 2 A |
|---|---|
| Operating Temperature Range | -30 °C to +85 °C |
| Insulation Resistance | 10 MΩ at 100 V DC |
| Withstanding Voltage | 1000 V AC for 1 min |
| Contact pitch | 2.54 mm |
| Board thickness | 2.4 mm (alternative 2.54 mm) |
The connector is rated for 2 A.
It can operate from –30 °C up to +85 °C.
The insulation resistance is 10 MΩ at 100 V DC.
