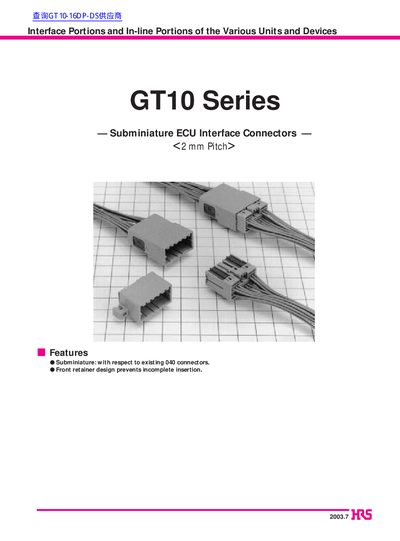

The GT10 series is a miniature ECU interface connector that is smaller than existing 040 connectors. It features a front retainer design that prevents incomplete insertion and provides multiple connector options to meet different application needs.
The GT10 Series is a subminiature ECU interface connector family with a 2 mm pitch and a front‑retainer design that prevents incomplete insertion. It is offered in several variants (GT10, GT10S, GT10M) with optional covers, retainer, and clamp fittings.
The datasheet provides part numbers, material information (PBT housings, brass clamp fittings, PC covers), recommended mounting screws (M3, 3L‑6), and compatible cable outer diameters (4 mm, 4.8 mm, 5.2 mm). It also includes specifications for an optional automatic crimping machine used to terminate the connectors.
| Pitch | 2 mm |
|---|---|
| Housing material | PBT (Light gray) |
| Retainer material | PBT (Dark gray) |
| Recommended mounting screw | M3 with nominal diameter 3L‑6 |
| Compatible cable outer diameters | 4 mm, 4.8 mm, 5.2 mm |
| Crimping machine force | 1.5 tons |
| Crimping machine stroke length | 30 mm |
The housing is made of PBT and is light gray in color.
Cables with outside diameters of 4 mm, 4.8 mm, and 5.2 mm are compatible.
Use M3 mounting screws with a nominal diameter of 3L‑6 for a 1.6 mm board thickness.
The machine provides 1.5 tons of force, a 30 mm stroke length, up to 240 strokes per minute, weighs 75 kg, and uses a 0.2 kW AC100 V motor.
