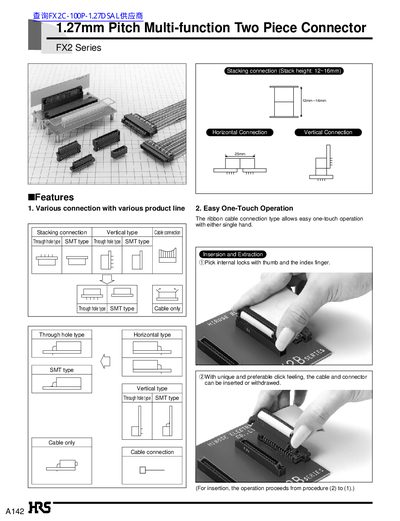

This document describes the features and characteristics of the A142 1.27mm Pitch Multi-function Two Piece Connector FX2 Series.
The FX2 series offers a variety of connection types—including vertical, horizontal, board‑to‑board, board‑to‑cable and SMT—each designed for easy one‑touch operation and reliable locking. Features such as mis‑insertion prevention, flux‑tight designs, and optional metal tabs for solder strength are described.
The handbook includes detailed specifications (current rating, voltage rating, temperature and humidity ranges, insulation resistance, vibration tolerance, and durability), ordering tables for different contact counts, functional flow charts, and recommended soldering profiles for both reflow and manual processes.
| Operating Temperature Range | -55°C to +85°C |
|---|---|
| Storage Temperature Range | -10°C to +60°C |
| Voltage Rating | 125 V AC |
| Operating Humidity Range | 40% to 80% |
| Storage Humidity Range | 40% to 70% |
| Insulation Resistance | 1000 MΩ min at 250 V DC |
| Withstanding Voltage | 300 V AC for 1 min |
| Contact Resistance | 45 mΩ max at 100 mA |
| Vibration Tolerance | 10‑55 Hz, 0.75 mm amplitude |
| Durability (Mating/Un‑mating) | 500 cycles |
| Manual Soldering Temperature | 260 °C for 10 seconds |
The FX2 connector is rated for 125 V AC.
The series is offered with 20, 32, 40, 52, 60, 68, 80, 100, or 120 contacts.
Manual soldering should be performed at 260 °C for 10 seconds.
A tolerance clearance of within 1 mm is recommended for mating.
