A71 is a pluggable type of connector with shielding layer and complies with DIN 41612 standard. It has high reliability, various contact methods, wide applications and high frequency characteristics.

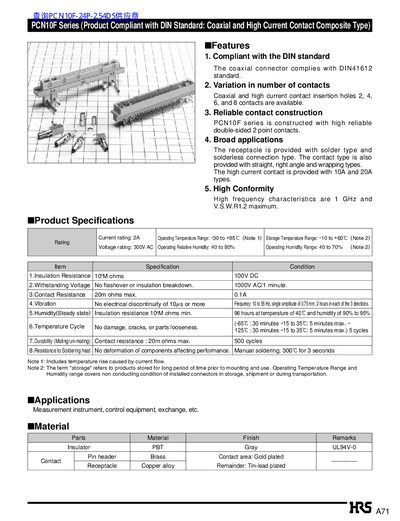

The PCN10F series from HRS provides DIN‑41612 compliant coaxial and high‑current contact connectors. Available in 2, 4, 6 and 8‑contact configurations, the series offers solder and solder‑less mounting options, with straight, right‑angle and wrapping body styles. High‑frequency performance reaches 1 GHz with VSWR ≤ 1.2.
Key specifications include a 2 A current rating, 300 V AC voltage rating, operating temperature from –30 °C to +85 °C, and insulation resistance of 10 MΩ at 100 V DC. The connectors are supplied with gold‑plated contacts and brass or copper‑alloy bodies, and are suitable for measurement instruments, control equipment and other industrial applications.
| Current rating | 2 A |
|---|---|
| Voltage rating | 300 V AC |
| Operating temperature range | -30 °C to +85 °C |
| Storage temperature range | -10 °C to +60 °C |
| Insulation resistance | 10 MΩ at 100 V DC |
| Withstanding voltage | 1000 V AC for 1 min |
| Contact resistance | ≤ 20 mΩ (0.01 A) |
| Humidity range (operating) | 40 %–80 % RH |
| Number of contacts | 24, 42, 60, 78 (varies by configuration) |
The PCN10F series is rated for 2 A continuous current.
The series complies with the DIN 41612 standard.
Both solder‑type and solder‑less connection types are offered, with straight, right‑angle and wrapping body styles.
Configurations of 2, 4, 6, and 8 contacts are available, corresponding to part numbers with 24, 42, 60, or 78 total pins.
