4V Drive Nch MOSFET RXH070N03 is a low drive MOSFET with low on-resistance, built-in G-S protection diode and small package. It is suitable for switching applications.
The RXH070N03 is a silicon N‑channel MOSFET offered in a compact SOP8 surface‑mount package. It features a low on‑resistance, a built‑in gate‑source protection diode, and is suitable for switching applications.

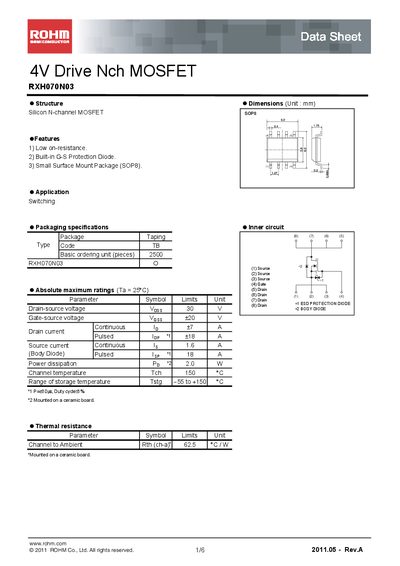

The datasheet provides absolute maximum ratings, electrical characteristics, thermal resistance data, and typical application circuits. It also includes measurement setups for switching time and gate charge, as well as legal notices and usage guidelines.
| Package | SOP8 |
|---|---|
| Drain‑source voltage (VDS) | 30 V |
| Gate‑source voltage (VGS) | +20 V |
| On‑resistance (RDS(on)) typical | 5 mΩ |
| Total gate charge (Qg) | 5.8 nC |
| Thermal resistance (RθJA) | 62.5 °C/W |
The device can tolerate up to 30 V between drain and source.
Typical on‑resistance is about 5 mΩ.
It is supplied in a small SOP8 surface‑mount package.
