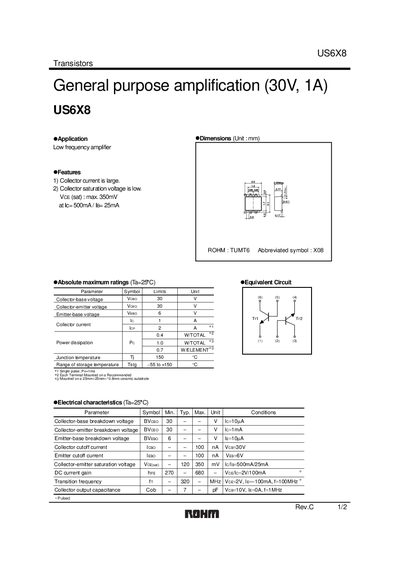

US6X8 Transistors Rev.C is a general-purpose amplifier suitable for low-frequency amplification. It has a large collector current and low collector saturation voltage. The dimensions are ROHM: TUMT6, abbreviated symbol X08. The maximum operating temperature is 150°C.
The US6X8 is a general‑purpose NPN transistor designed for low‑frequency amplification applications. It offers a large collector current and low saturation voltage, making it suitable for audio‑visual, office‑automation, and communications equipment.
The datasheet lists absolute maximum ratings, electrical characteristics, packaging details, and typical performance curves. It also includes important usage notes, such as storage temperature limits and restrictions for safety‑critical applications.
| Collector‑emitter voltage (V_CEO) | 30 V |
|---|---|
| Junction temperature (T_J) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| Saturation voltage (V_CE(sat)) | max 350 mV at I_C=500 mA, I_B=25 mA |
The transistor is supplied in a TR package with a basic ordering unit of 3 000 pieces.
No; for high‑reliability safety devices the user should consult ROHM’s sales representative in advance.
