US6T8 is a general-purpose amplifier suitable for low-frequency amplification and driver applications. Its features include: 1) Large collector current; 2) Low collector saturation voltage.
The US6T8 is a general‑purpose amplification transistor from ROHM, intended for low‑frequency amplifier and driver applications. It offers a large collector current capability and low saturation voltage.

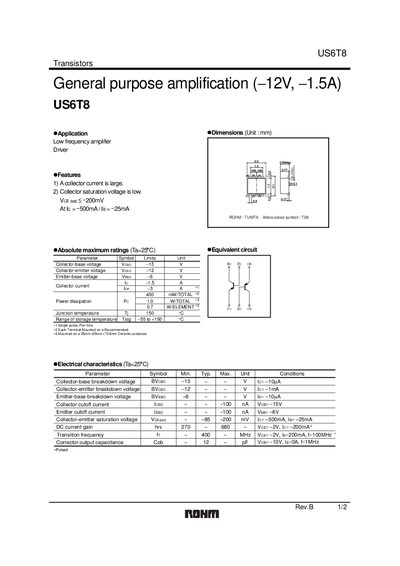

The datasheet lists absolute maximum ratings, electrical characteristics such as voltage limits, current gain, transition frequency, and power dissipation, as well as packaging details and typical characteristic curves. Users are advised to consult the appendix for export control and usage restrictions.
| Collector‑base voltage (Vcbo) | -15 V |
|---|---|
| Collector‑emitter voltage (Vceo) | -12 V |
| Emitter‑base voltage (Vebo) | -6 V |
| Maximum collector current (Ic) | 15 A |
| Power dissipation (Pc) | 1.0 W |
| Junction temperature (Tj) | 150 °C |
| DC current gain (hFE) | 270‑680 |
| Transition frequency (fT) | 400 MHz |
| Collector‑emitter saturation voltage (Vce(sat)) | -85 to -200 mV |
The maximum collector current is 15 A.
The device can dissipate up to 1.0 W.
Collector‑base voltage is -15 V, collector‑emitter voltage is -12 V, and emitter‑base voltage is -6 V.
