The US6X7 is a NPN type general purpose amplifier from ROHM, with a maximum collector current of 1.5A and a low collector-emitter saturation voltage of only 200mV.
The US6X7 transistor is designed for low‑frequency amplification applications. It offers a large collector current and low collector‑saturation voltage, making it suitable for audio‑visual, office‑automation, communications, and other electronic equipment.

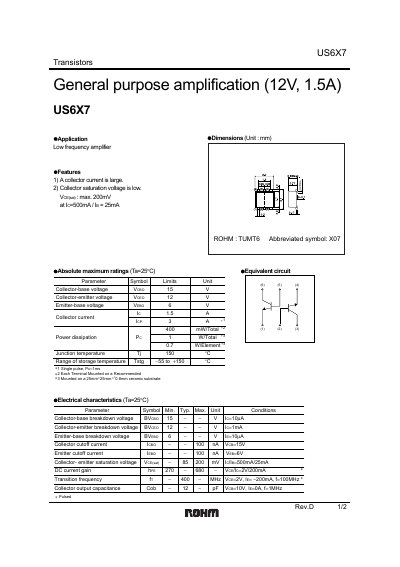

The datasheet provides absolute maximum ratings, electrical characteristics, packaging details, and characteristic curves such as collector‑emitter saturation voltage, current gain, transition frequency, and switching times. It also includes legal and export‑control notices from ROHM Co., Ltd.
| Collector‑emitter saturation voltage (max) | 200 mV at IC=500 mA, IB=25 mA |
|---|---|
| Collector‑base breakdown voltage (BV CBO) | 12 V |
| Transition frequency (fT) | 100 MHz |
| Typical DC current gain (hFE) | ≈400 |
It is a maximum of 200 mV when IC=500 mA and IB=25 mA.
The transition frequency is specified as 100 MHz.
