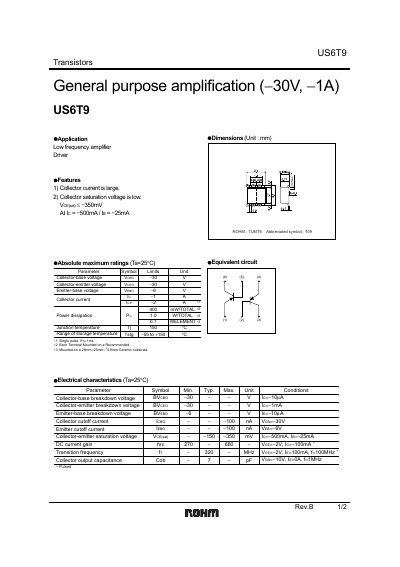

US6T9 is a low frequency amplifier driver from ROHM, featuring large collector current and low collector saturation voltage.
The US6T9 is a general‑purpose amplification transistor designed for low‑frequency amplifier driver applications. It offers a large collector current and low collector‑saturation voltage, making it suitable for audio‑visual, office‑automation, communications, and electronic toy circuits.
The document provides absolute maximum ratings, detailed electrical characteristics, and packaging specifications. It also includes a disclaimer that the device is not intended for safety‑critical equipment such as medical instruments or aerospace systems without prior consultation with ROHM sales representatives.
| Collector‑Base voltage (VCBO) | -30 V |
|---|---|
| Collector‑Emitter voltage (VCEO) | -30 V |
| Power dissipation | 1.0 W/TOTAL |
| Collector‑Emitter saturation voltage (VCE(sat)) | ≤ -350 mV at IC = -500 mA / IB = -25 mA |
| Package type | US6T9TR 3000, 25 mm × 25 mm × 0.8 mm ceramic |
The maximum collector‑emitter voltage is -30 V.
The saturation voltage is ≤ -350 mV at IC = -500 mA.
It is supplied in a US6T9TR 3000 type, 25 mm × 25 mm × 0.8 mm ceramic package.
