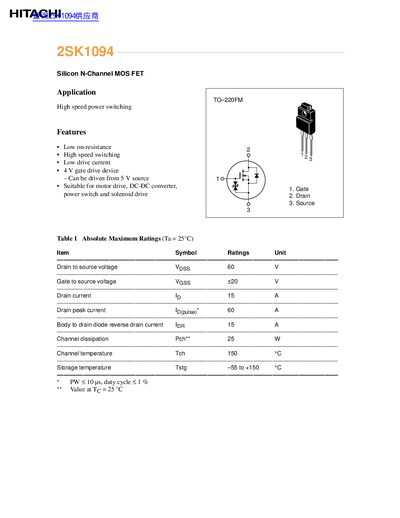

2SK1094 is a silicon N-channel MOSFET that is suitable for applications such as motor drive, DC-DC converter, power switch and solenoid drive. It features low on-resistance, high switching speed, low drive current and can be driven from a 5V source.
The 2SK1094 is a silicon N‑channel MOSFET designed for high‑speed power switching applications such as motor drives, DC‑DC converters, and solenoid drivers. It features low on‑resistance, low drive current requirements and can be driven directly from a 5 V source.
Key specifications include a 60 V drain‑source rating, 15 A continuous drain current, 0.055 Ω typical on‑state resistance, and a 25 W power dissipation capability. Thermal derating curves and transient impedance data are also provided to aid in thermal design.
| Drain‑to‑source voltage (Vdss) | 60 V |
|---|---|
| Gate‑to‑source voltage (Vgss) | +20 V |
| Continuous drain current (Id) | 15 A |
| Peak drain current (Idp) | 60 A |
| Input capacitance (Ciss) | 860 pF |
| Output capacitance (Coss) | 450 pF |
| Turn‑on delay time | 10 ns |
| Turn‑off delay time | 180 ns |
The device is rated for a maximum drain‑to‑source voltage of 60 V.
The continuous drain current rating is 15 A.
