2SK0301 (2SK301) is a silicon N-channel junction field effect transistor produced by Panasonic. It features low noise, high gain, high gate to drain voltage VGDO, etc. It is mainly used in low frequency amplification and switching circuits.
The 2SK0301 is a small‑signal silicon N‑channel junction FET designed for low‑frequency amplification and switching applications. It offers a high gate‑to‑drain voltage rating of 55 V and a maximum drain current of 30 mA, making it suitable for standard electronic equipment such as office and communications devices.

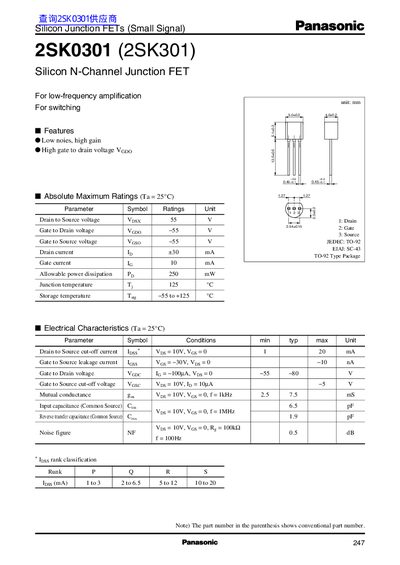

The datasheet provides absolute maximum ratings, electrical characteristics, and typical performance graphs. Users are reminded to observe export regulations and to verify the latest specifications before final design, as product details may change without notice.
| Drain to Source Voltage (VDS) | 55 V |
|---|---|
| Gate to Drain Voltage (VGD) | 55 V |
| Drain Current (ID) | 30 mA |
| Gate Current (IG) | 10 mA |
| Power Dissipation (PD) | 250 mW |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range | -55 °C to +125 °C |
The maximum drain‑to‑source voltage is 55 V.
The device can be stored from –55 °C to +125 °C, and typical ambient operation is up to 125 °C.
