PT 1,5/ 5-5,0-H is a product of PHOENIX CONTACT. It has a rated current of 17.5 A, a rated voltage of 250 V, a pitch of 5 mm, a number of positions of 5, a connection type of screw connection, an assembly type of soldering, a conductor/PCB connection direction of 0°, and a color of green.
The PT 1,5/5-5,0-H is a 5‑position screw‑type terminal block from Phoenix Contact, designed for a nominal current of 17.5 A and a nominal voltage of 250 V. It features a 5 mm pitch and can be assembled by soldering or screw connection.

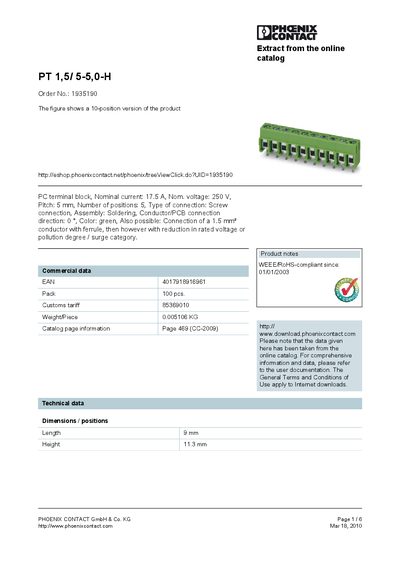

The sheet provides detailed specifications such as dimensions, weight, tightening torque, surge voltage ratings, and lists compatible accessories and certification approvals. Contact information for Phoenix Contact and ordering details are also included.
| Nominal current | 17.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 5 |
| Length | 9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.005106 kg |
| EAN | 4017918916961 |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 17.5 A.
It has five positions.
The pitch is 5 mm.
Yes, it has been RoHS compliant since 01/01/2003.
