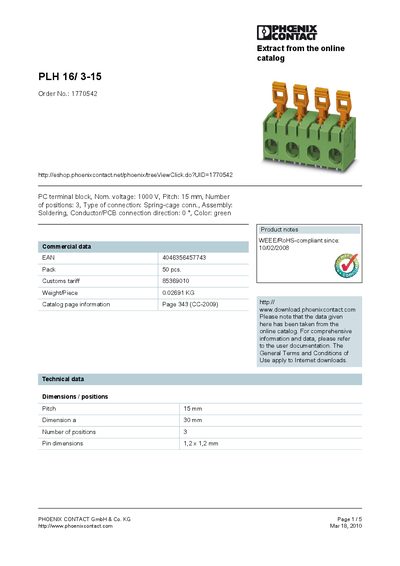

PHL 16/ 3-15 is a PC terminal block from PHOENIX CONTACT with a rated voltage of 1000V, a pitch of 15mm, 3 pins, a spring-cage connection, a soldering assembly, a 0° conductor/PCB connection direction, and a green color.
The PLH 16/3-15 is a 3‑position terminal block with a 15 mm pitch, designed for spring‑cage connections and soldering assembly. It is rated for a nominal voltage of 1000 V and complies with WEEE/RoHS regulations.
The document lists detailed technical specifications such as pin dimensions, weight, and packaging, and includes diagrams, drilling plans, and contact information for Phoenix Contact. For full product documentation, refer to the user manuals available on the Phoenix Contact website.
| Pitch | 15 mm |
|---|---|
| Number of positions | 3 |
| Pin dimensions | 1.2 × 1.2 mm |
| Weight per piece | 0.02691 kg |
| Pack size | 50 pcs |
| EAN | 4046356457743 |
It has three positions.
The pitch is 15 mm.
