This is a PC terminal block produced by PHOENIX CONTACT. The rated current is 13.5A, the rated voltage is 250V, the pitch is 5.08mm, the number of positions is 7, the connection method is screw connection, the assembly method is soldering, the conductor/PCB connection direction is 55 degrees, and the color is green.

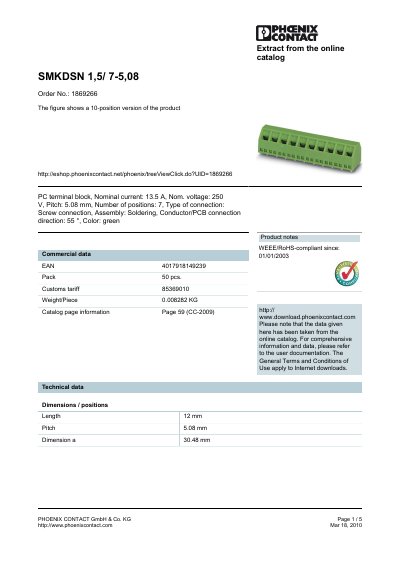

The SMKDSN 1,5/7-5,08 is a 7‑position PC terminal block with a 5.08 mm pitch and screw connection. It is rated for 13.5 A nominal current and 250 V nominal voltage, suitable for conductor cross‑sections from 0.14 mm² to 1.5 mm².
The product complies with RoHS and WEEE directives and carries multiple certifications (CB, CCA, CSA, CUL, GOST, SEV, UL). Accessories such as marker pens and labeling cards are listed for easy identification of terminals.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 7 |
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Weight per piece | 0.008282 kg |
The terminal block is rated for a nominal current of 13.5 A.
It uses a 5.08 mm pitch.
It is certified by CB, CCA, CSA, CUL, GOST, SEV and UL.
Yes, it complies with RoHS and WEEE directives.
