MC 1,5/ 4-STF-3,5 is a plug component from PHOENIX CONTACT. It has an 8 A nominal current, a 160 V nominal voltage, a 3.5 mm pitch, 4 positions and a M2 thread.

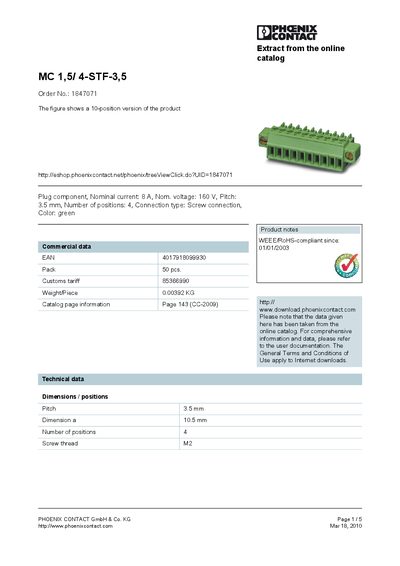

The MC 1,5/4-STF-3,5 is a green, screw‑connection terminal block with a 3.5 mm pitch and four positions. It is rated for 8 A nominal current and 160 V nominal voltage, with a compact dimension of 10.5 mm width and a weight of 0.00392 kg per piece.
The handbook also lists compatible accessories such as marker cards and screwdrivers, and includes certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI). WEEE/RoHS compliance is noted as of 01/01/2003.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Screw thread | M2 |
| Weight per piece | 0.00392 kg |
The terminal block is rated for a nominal current of 8 A.
It has four positions.
The pitch is 3.5 mm.
The minimum torque is 0.22 Nm and the maximum is 0.25 Nm.
