This product is the PLH 16/ 3-10-ZF PC terminal block from PHOENIX CONTACT. It has a rated voltage of 1000 V, a pitch of 10 mm, 3 positions, spring cage connection, soldering assembly, 0° conductor/PCB connection direction, and a green color.
The PLH 16/3-10-ZF is a spring‑cage terminal block with a 10 mm pitch and three positions. It is rated for a nominal voltage of 1000 V and complies with WEEE/RoHS regulations.

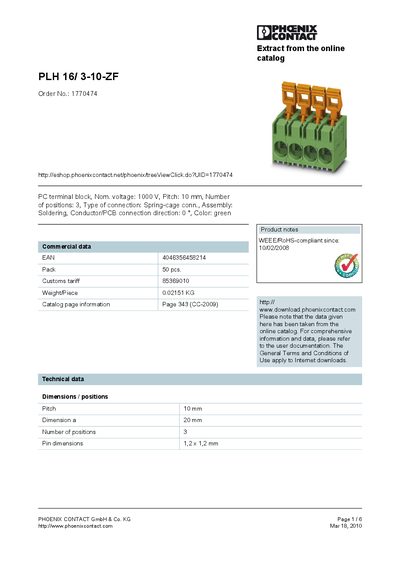

The document provides dimensions, pin and hole specifications, insulating material details, connection data, and several mechanical drawings. Packaging contains 50 pieces per pack and the part is identified by EAN 4046356458214.
| Pitch | 10 mm |
|---|---|
| Number of positions | 3 |
| Weight per piece | 0.02151 kg |
| Pack quantity | 50 pcs |
| EAN | 4046356458214 |
It has three positions.
The pitch is 10 mm.
