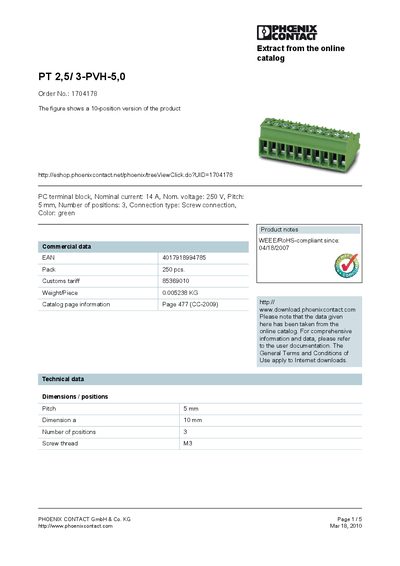

PT 2,5/ 3-PVH-5,0 is a PC terminal block produced by PHOENIX CONTACT with a rated current of 14 A, a rated voltage of 250 V, a pitch of 5 mm, 3 terminals, a screw connection and a green color.
The PT 2,5/3-PVH-5,0 is a 3‑position, 5 mm pitch terminal block with a nominal current of 14 A and a nominal voltage of 250 V. It features a screw‑type connection, green (or black for the header version) housing, and detailed mechanical dimensions.
The handbook includes tightening torque specifications, derating diagrams, certification listings (CUL, UL), and cross‑section data for solid and stranded conductors. Ordering numbers and additional related products are also listed.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Color | green |
| Weight per piece | 0.005238 kg |
The nominal current is 14 A.
The recommended tightening torque is 0.45 Nm minimum and 0.5 Nm maximum.
The rated surge voltage (III/3) is 4 kV, and the rated voltages are 320 V (III/2) and 630 V (II/2).
