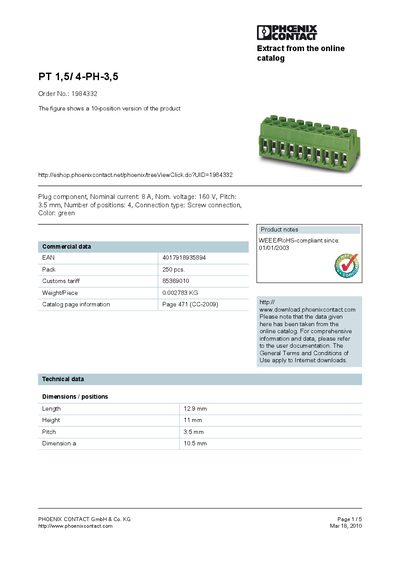

This document introduces the plug component product PT 1,5/ 4-PH-3,5 from PHOENIX CONTACT GmbH & Co. KG. The product has a rated current of 8A, a rated voltage of 160V, a pitch of 3.5mm, 4 positions, a screw connection, and a green color. This product is compliant with WEEE/RoHS standards.
The PT 1,5/4-PH-3,5 is a 4‑position screw‑connection terminal block from Phoenix Contact. It is designed for 8 A nominal current and 160 V nominal voltage, with a 3.5 mm pitch and a green housing.
The sheet provides detailed technical data such as dimensions (12.9 mm × 11 mm), weight (0.002783 kg per piece), surge voltage ratings (2.5 kV), and certifications (CCA, CUL, SEV, UL). Ordering information, accessories, and a dimensioned drawing are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 4 |
| Connection type | Screw connection |
| Length | 12.9 mm |
| Height | 11 mm |
| Weight per piece | 0.002783 kg |
| Certifications | CCA, CUL, SEV, UL |
The terminal block is rated for a nominal current of 8 A.
It has four positions.
The pitch is 3.5 mm.
The length is 12.9 mm.
