The product is a plug component from PHOENIX CONTACT with the part number FK-MCP 1,5/10-ST-3,81. It has a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.81 mm, 10 positions, spring-cage connection, and is green in color.
The FK-MCP 1.5/10-ST-3.81 is a 10‑position spring‑cage terminal block designed for 8 A nominal current and 160 V nominal voltage. It features a 3.81 mm pitch and is supplied in a green housing.

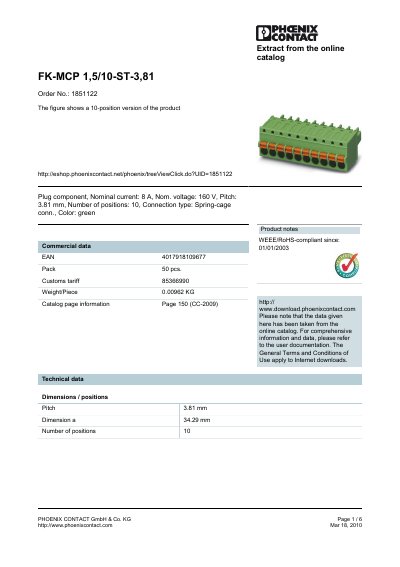

The datasheet lists detailed electrical ratings, material specifications, certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI) and a range of compatible accessories such as marker cards and screwdriver tools.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 10 |
| Rated surge voltage (III/3) | 2.5 kV |
| Insulating material | PA |
| Inflammability class | UL 94 V0 |
| Maximum load current | 8 A |
The terminal block is rated for a nominal current of 8 A.
The pitch of the terminal block is 3.81 mm.
It provides 10 positions.
The product is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
