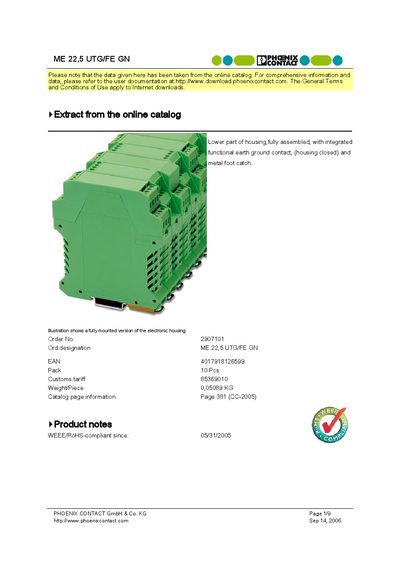

ME 22,5 UTG/FE GN is a component housing product of PHOENIX CONTACT GmbH & Co. KG. It is a fully assembled housing with an integrated functional earth ground contact, (housing closed) and metal foot catch.
The ME 22,5 UTG/FE GN is a modular terminal block with a component housing made of polyamide, green in color, and a width of 22.5 mm. It offers 16 positions and can be mounted with a fully assembled housing that includes an integrated functional earth‑ground contact and metal foot catch.
The handbook lists technical specifications such as ambient operating temperature, infl ammability class, weight, and ordering details. It also includes drawings, accessory part numbers, and additional product options for extending the housing or providing cover caps and plugs.
| Housing type | Component housing |
|---|---|
| Housing material | Polyamide |
| Color | green |
| Length | 99 mm |
| Width | 22.5 mm |
| Number of positions | 16 |
| Ambient temperature (operation) | -40 °C … 105 °C |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.05089 kg |
| EAN | 4017918126599 |
| Order number | 2907101 |
| Customs tariff | 85369010 |
The housing is made of polyamide.
It provides 16 positions.
The ambient operating temperature ranges from –40 °C to 105 °C.
