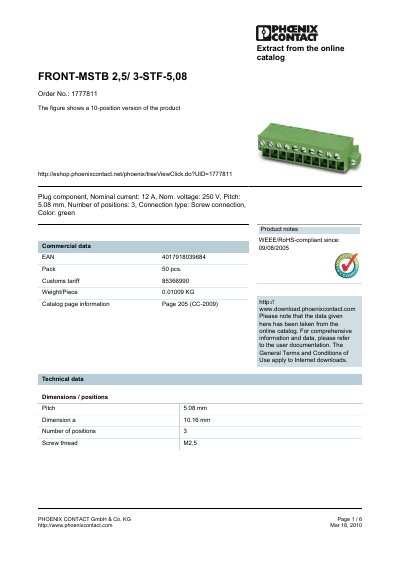

The FRONT-MSTB 2,5/3-STF-5,08 is a 3‑position screw‑connection terminal block rated for 12 A and 250 V. It features a 5.08 mm pitch, green housing and complies with EN‑VDE standards. Technical parameters such as tightening torque, insulating material and surge voltage are listed.
The document also provides certification information (CB, CSA, CUL, GL, GOST, UL, VDE‑PZI), a range of accessories and related product variants, as well as dimensional drawings and ordering details.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Insulating material group | I |
| Rated surge voltage | 4 kV |
| Certifications | CB, CSA, CUL, GL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 12 A.
Apply a tightening torque between 0.5 Nm (minimum) and 0.6 Nm (maximum).
It is certified by CB, CSA, CUL, GL, GOST, UL and VDE‑PZI.
The pitch is 5.08 mm.
