SPTA 1/10-3,5 is a green PC terminal block from PHOENIX CONTACT with a nominal current of 9A, a rated voltage of 160V, a pitch of 3.5mm, 10 positions, a spring-cage connection, a soldering assembly, and a conductor/PCB connection direction of 45°.
The SPTA 1/10-3,5 is a spring‑cage terminal block with 10 positions, a 3.5 mm pitch, nominal current of 9 A and nominal voltage of 160 V. It is supplied in a green housing and is designed for soldered PCB connections with a 45° conductor direction.

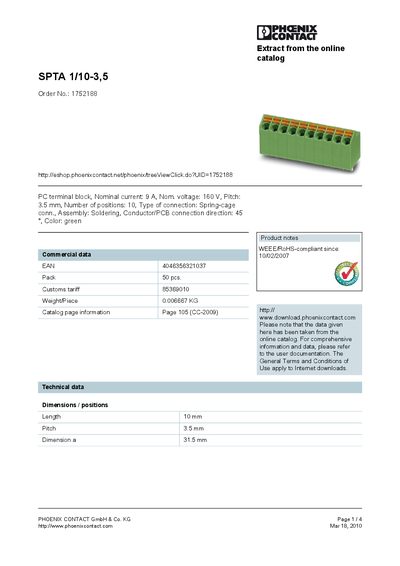

The handbook lists detailed technical specifications, dimensions, surge voltage ratings, certifications (UL, CUL) and compliance information (RoHS since 10/02/2007). It also includes ordering data, a drilling plan, and contact details for Phoenix Contact.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
The nominal current rating is 9 A.
It has 10 positions.
The pitch is 3.5 mm.
Yes, it has been RoHS‑compliant since 10/02/2007.
