PST 1,3/ 8-LV-5,0 is a connector produced by PHOENIX CONTACT. The rated current is 14A, the rated voltage is 250V, the pitch is 5mm, the number of positions is 8, the color is black, and the assembly method is soldering.
The PST 1,3/8-LV-5,0 is a 10‑position, black‑colored connector with a 5 mm pitch, rated for 14 A nominal current and 250 V nominal voltage. It measures 10.8 mm in length, 35 mm in overall dimension, and features 1.3 mm pin spacing. Commercial details include an EAN of 4017918995126, a pack size of 100 pieces, and a weight of 0.002996 kg per piece.

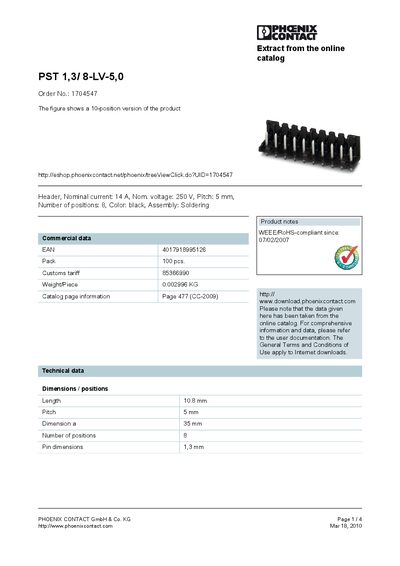

The data is extracted from Phoenix Contact’s online catalog (page 477, CC‑2009) and includes certifications such as UL, CUL, and EN‑VDE. For complete documentation and additional information, refer to the full user documentation available on the Phoenix Contact website.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 8 |
| Length | 10.8 mm |
| Overall dimension (a) | 35 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.002996 kg |
| EAN | 4017918995126 |
The connector is rated for a nominal current of 14 A.
It has 8 positions.
The pitch is 5 mm.
The connector length is 10.8 mm.
