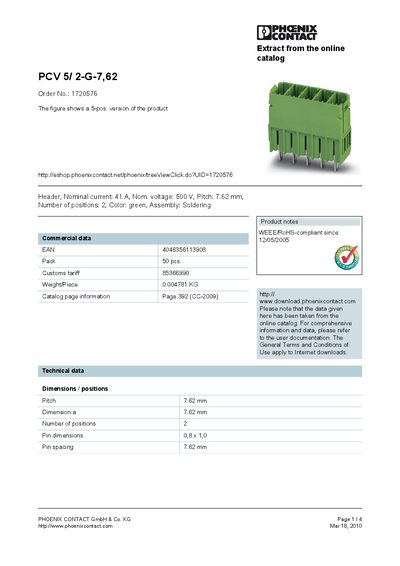

The document introduces the PCV 5/ 2-G-7,62 product from PHOENIX CONTACT GmbH & Co. KG. The product is a 5-position socket with a nominal current of 41A, nominal voltage of 500V, pitch of 7.62mm, green color, and can be installed through soldering. Additionally, the product is WEEE/RoHS compliant.
The PCV 5/2-G-7,62 is a 2‑position, green‑colored terminal block with a 7.62 mm pitch, designed for solder‑type assembly. It is rated for a nominal current of 41 A and a nominal voltage of 500 V.
The leaflet provides technical data such as dimensions, pin size, weight, certifications (CUL, UL), and surge voltage ratings. For full product documentation, refer to the online catalog or Phoenix Contact’s user manuals.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 2 |
| Pin dimensions | 0.8 × 1.0 mm |
| Weight per piece | 0.004781 kg |
| Pack quantity | 50 pcs |
The terminal block is rated for a nominal current of 41 A.
The pitch of the terminal block is 7.62 mm.
It has two positions.
Each unit weighs 0.004781 kg.
