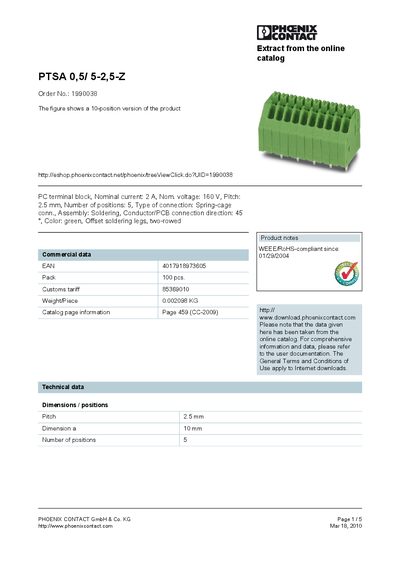

This document is a PDF file about PTSA 0,5/ 5-2,5-Z. It introduces the features and characteristics of the product, including the rated current, rated voltage, pitch, pin dimensions, pin spacing, insulating material group, rated surge voltage, and rated voltage.
The PTSA 0.5/5-2.5-Z is a green, spring‑cage terminal block with a 2.5 mm pitch, available in 5‑position and 10‑position versions. It is designed for soldering assembly and supports a nominal current of 2 A and a nominal voltage of 160 V.
The datasheet provides detailed technical data, including pin dimensions, rated surge voltages, insulation material, derating diagrams, and certification information (CUL, UL, VDE‑PZI). Physical dimensions, weight (0.002098 kg), and drawing references are also included.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 5 (10‑position version available) |
| Color | green |
The nominal current is 2 A.
The pitch is 2.5 mm.
The standard version has 5 positions, with a 10‑position version also shown.
