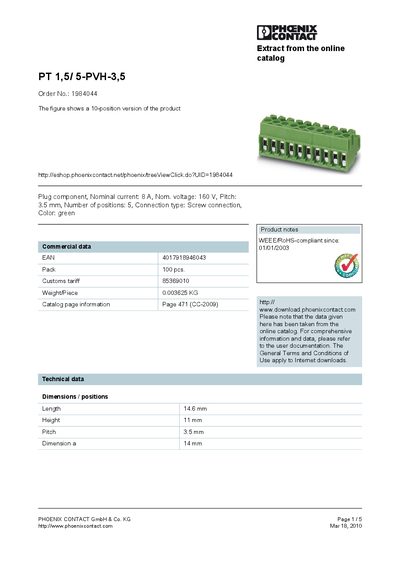

PT 1,5/ 5-PVH-3,5 is a connector from PHOENIX CONTACT. It has a rated current of 8A and a rated voltage of 160V. The connector is green and has a screw connection.
The PT 1,5/5-PVH-3,5 is a 5‑position screw‑type terminal block with a 3.5 mm pitch, rated for 8 A and 160 V. It is supplied in a green housing and is designed for easy installation and reliable connection.
The handbook lists detailed dimensions, electrical ratings, tightening torque values, and approved accessories such as marker cards and screwdrivers. Certification information (UL, CUL, CCA) and commercial data like weight and EAN are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Color | green |
| Length | 14.6 mm |
| Height | 11 mm |
| Weight per piece | 0.003625 kg |
| EAN | 4017918946043 |
| Minimum tightening torque | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
It has five positions.
The pitch is 3.5 mm.
Apply a minimum torque of 0.22 Nm and a maximum of 0.25 Nm.
