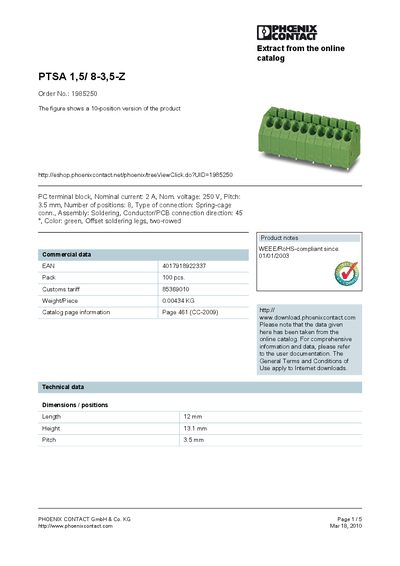

This is a PDF file about PTSA 1,5/ 8-3,5-Z. It is a PC terminal block with a nominal current of 2 A, a rated voltage of 250 V, a pitch of 3.5 mm, 8 positions, a spring-cage connection, a soldering assembly, a conductor/PCB connection direction of 45°, a green color, offset soldering legs, and two rows.
The PTSA 1,5/8-3,5-Z is a spring‑cage terminal block from Phoenix Contact designed for 2 A nominal current and 250 V nominal voltage. It features a 3.5 mm pitch and is available in an 8‑position configuration.
The sheet provides detailed dimensions, weight, rated surge voltages, and certification information (CCA, CUL, UL, VDE‑PZI). Derating diagrams and drilling plans are also included for proper installation.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Weight per piece | 0.00434 kg |
The terminal block is rated for a nominal current of 2 A.
The pin pitch is 3.5 mm.
It provides 8 positions.
It is certified CCA, CUL, UL, and VDE‑PZI.
