SPC 5/ 2-STCL-7,62 is a connector produced by PHOENIX CONTACT GmbH & Co. KG, Germany. Its rated current is 41A and rated voltage is 1000V. The interface type is spring cage connection, and the color is green.
The SPC 5/2-STCL-7.62 is a 5‑position plug component offered by Phoenix Contact. It features a spring‑cage connection, green color, and a 7.62 mm pitch.

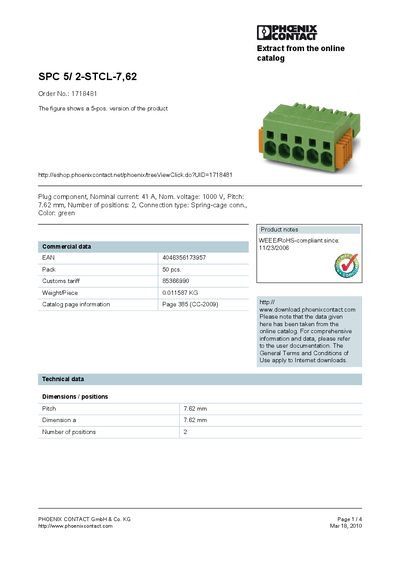

The sheet provides electrical ratings (41 A, 1000 V), mechanical dimensions, surge voltage (6 kV), and compliance information such as RoHS certification and UL/CUL approvals. Contact and address details for Phoenix Contact are also included.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 7.62 mm |
| Number of positions | 2 |
| Connection type | Spring‑cage |
| Color | green |
| RoHS compliance date | 11/23/2006 |
The nominal current rating is 41 A.
The connector has a 7.62 mm pitch.
It has 2 positions.
Yes, it has been RoHS compliant since 11/23/2006.
