This document is about the product information manual of the 1/ 3-3.5 terminal connector. This connector has a rated current of 9A and a rated voltage of 160V. The terminal pitch is 3.5mm, the connection type is spring-cage connection, and the assembly method is soldering.
The SPTA 1/3-3.5 is a spring‑cage terminal block from Phoenix Contact designed for 9 A nominal current and 160 V nominal voltage. It features a 3.5 mm pitch and is available in a 3‑position version.

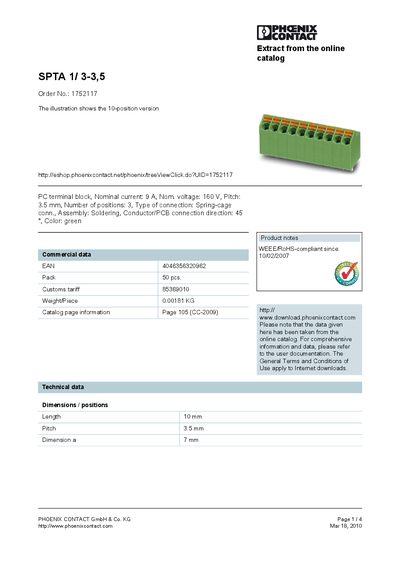

The leaflet provides detailed technical data, dimensional drawings, certification information (UL, CUL) and compliance notes such as RoHS status and weight per piece.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Weight per piece | 0.00181 kg |
| RoHS compliance date | 10/02/2007 |
| Certifications | CUL, UL |
The terminal block is rated for a nominal current of 9 A.
The pitch of the terminals is 3.5 mm.
It is available with three positions.
Yes, it has been RoHS compliant since 10 / 02 / 2007.
