MC 1,5/ 3-G-3,81 is a connector produced by PHOENIX CONTACT. It has a rated current of 8 A, a rated voltage of 160 V, a pitch of 3.81 mm, pin dimensions of 0.8 x 0.8 mm, a green color and a soldering assembly.

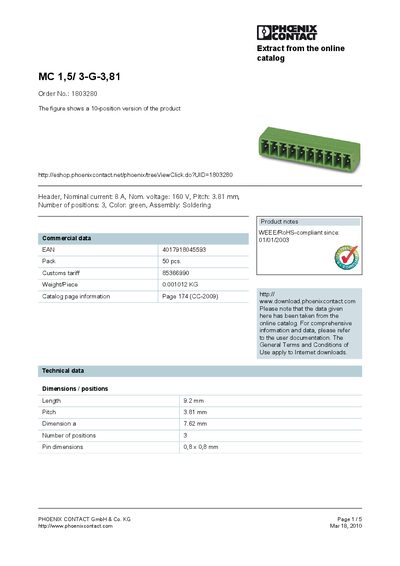

This handbook provides the key specifications for the Phoenix Contact MC 1,5/3-G-3,81 terminal block. It lists electrical ratings such as 8 A nominal current and 160 V nominal voltage, as well as mechanical details like a 3.81 mm pitch and three positions.
Additional information includes accessory part numbers, certification approvals (CSA, CUL, UL, etc.), and contact details for Phoenix Contact. The document is extracted from the online catalog and is intended for quick reference by engineers and purchasers.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 3 |
| Length | 9.2 mm |
| Pin dimensions | 0.8 × 0.8 mm |
The nominal current is 8 A.
The pitch is 3.81 mm.
It has three positions.
The product is green.
