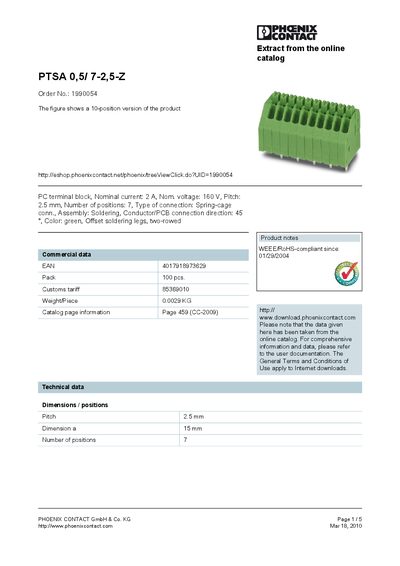

This document introduces the PC terminal block product from PHOENIX CONTACT GmbH & Co. KG, including its specifications, connection type, color, etc.
The PTSA 0,5/7-2,5-Z is a spring‑cage terminal block with a 2.5 mm pitch, designed for soldered PCB connections. It is rated for 2 A nominal current and 160 V nominal voltage, and is supplied in a green‑colored, two‑rowed housing.
The handbook lists detailed dimensions, pin spacing, derating diagrams, and certification information (CUL, UL, VDE‑PZI). For complete product information, refer to the online catalog or contact Phoenix Contact.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 7 |
| Color | green |
| Connection type | Spring‑cage |
The terminal block is rated for a nominal current of 2 A.
The pin pitch is 2.5 mm.
The standard version has 7 positions, with a 5‑position version also available on request.
