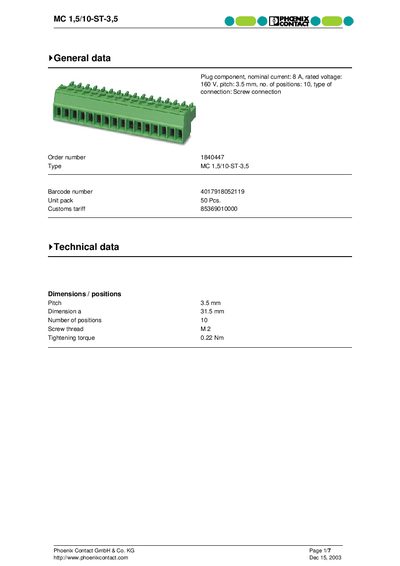

The document describes a general data plug component with a nominal current of 8A, rated voltage of 160V, pitch of 3.5mm, 10 positions, and screw connection type.
The MC 1,5/10-ST-3,5 is a screw‑type terminal block from Phoenix Contact designed for 8 A nominal current and a rated voltage of 160 V. It features a 3.5 mm pitch, ten positions, and M2 screw threads.
Key specifications include a tightening torque of 0.22 Nm, a body dimension of 31.5 mm, and certifications such as UL and CSA. The handbook also lists compatible accessories, additional product variants, and contact information for Phoenix Contact.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 10 |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Body dimension (a) | 31.5 mm |
| Nominal voltage (U) | 300 V |
| AWG/kcmil range | 30‑14 |
| Certificates | UL, CSA |
The terminal block is rated for a nominal current of 8 A.
It has a 3.5 mm pitch and ten positions.
The recommended screw thread is M2 with a tightening torque of 0.22 Nm.
It is certified by UL and CSA.
