DFK-PC 5/ 4-G-7.62 is a Phoenix Contact connector product with a nominal current of 41 A, a nominal voltage of 500 V, a pin spacing of 7.62 mm, pin dimensions of 0.8 x 1.0, a hole diameter of 1.3 mm, an insulating material group of I, a rated surge voltage of 6 kV, a connection method in accordance with EN-VDE standard, and a maximum load current of 41 A. The insulating material is PA Inflamma.

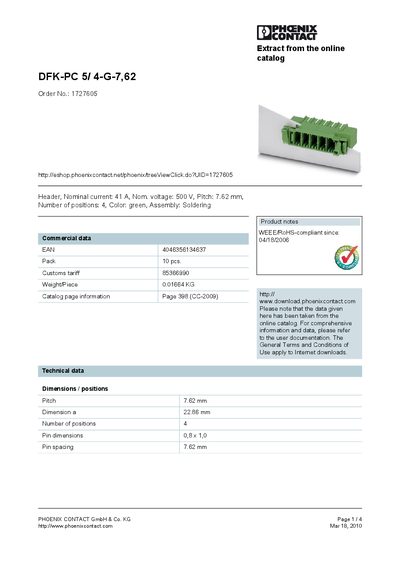

This datasheet provides the key technical data for the Phoenix Contact DFK‑PC 5/4‑G‑7,62 connector. It includes electrical ratings, mechanical dimensions, material information and compliance details.
The document lists the nominal current (41 A), nominal voltage (500 V), pitch (7.62 mm), number of positions (4), and other important parameters such as weight, packaging and RoHS compliance date.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 800 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Color | green |
| Insulating material | PA |
| Inflammability class | UL 94 VO |
| Weight per piece | 0.01664 KG |
| EAN | 4046356134637 |
| Hole diameter | 1.3 mm |
| Maximum load current | 41 A |
| RoHS compliance date | 04/18/2006 |
The connector is rated for a nominal current of 41 A.
It has four positions.
The pitch is 7.62 mm.
Yes, it has been RoHS compliant since 04/18/2006.
