PC 35 HC/ 5-GF-15,00 is a connector produced by PHOENIX CONTACT company. It has a rated current of 125 A, a rated voltage of 1000 V, a pitch of 15 mm, 5 pins, green color and can be assembled by soldering.
The PC 35 HC/5-GF-15,00 is a 5‑position, green‑colored terminal block with a 15 mm pitch, designed for soldered assembly. It is rated for a nominal current of 125 A and a nominal voltage of 1000 V, making it suitable for high‑current applications.

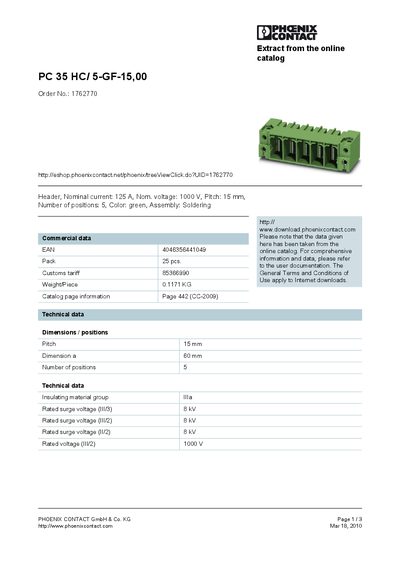

The leaflet provides commercial data such as the EAN, weight (0.1171 kg), and packaging details, as well as technical specifications including surge voltage ratings (8 kV), insulating material (PBT), and UL‑94 inflammability class. Ordering information and a drilling plan for the solder pad geometry are also included.
| Nominal current | 125 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 15 mm |
| Number of positions | 5 |
| Weight per piece | 0.1171 kg |
| Inflammability class | UL 94 |
The terminal block is rated for a nominal current of 125 A.
It is rated for a nominal voltage of 1000 V.
The device provides 5 positions.
The pitch between contacts is 15 mm.
