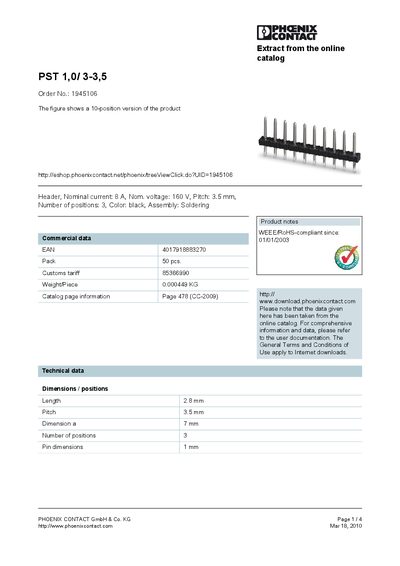

This document describes the features and characteristics of the PST 1,0/ 3-3,5 product produced by PHOENIX CONTACT GmbH & Co. KG, including nominal current, nominal voltage, number of positions, color, etc.
The PST 1,0/3-3,5 is a 3‑position, 3.5 mm pitch connector offered by Phoenix Contact. The sheet lists its nominal current, voltage, and key physical characteristics, as well as commercial data such as packaging and weight.
Technical details include dimensions, pin size, surge voltage ratings, and compliance information. The document also contains drawing excerpts, a derating curve, and the company's contact address for further inquiries.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Length | 2.8 mm |
| Dimension a | 7 mm |
| Pin dimensions | 1 mm |
| Weight per piece | 0.000449 kg |
| EAN | 4017918883270 |
| Pack size | 50 pcs |
| RoHS compliance date | 01/01/2003 |
The connector is rated for a nominal current of 8 A.
It has three positions.
The pitch is 3.5 mm.
Each piece weighs 0.000449 kg.
