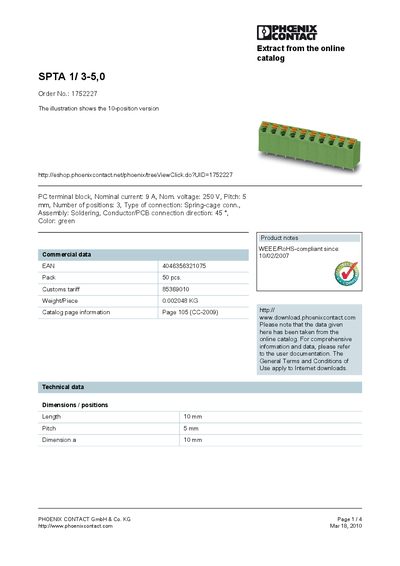

This document is about the PHOENIX CONTACT GmbH & Co. KG product SPTA 1/3-5,0. It is a PC terminal block with a rated current of 9A and a rated voltage of 250V. It uses spring-cage connection and is assembled by soldering. It has 3 positions and a pitch of 5mm. It is WEEE/RoHS-compliant.
This document provides the technical specifications for the Phoenix Contact SPTA 1/3-5,0 terminal block. It lists electrical ratings, mechanical dimensions, connection type, and compliance information extracted from the online catalog.
The sheet also includes certification details, drawing references, and contact information for Phoenix Contact GmbH & Co. KG.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Type of connection | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB direction | 45° |
| Color | Green |
| Nominal voltage Ux | 300 V |
| Nominal current (alternative listing) | 10 A |
The terminal block is rated for a nominal current of 9 A.
It has three positions.
The pitch between contacts is 5 mm.
It uses a spring‑cage connection.
