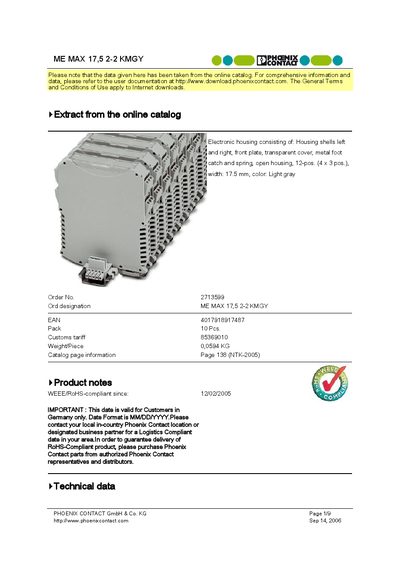

ME MAX 17,5 2-2 KMGY is an electronic housing produced by PHOENIX CONTACT, which consists of left and right housing shells, front panel, transparent cover, metal foot catch and spring. The housing is open and has 12 positions (4 x 3 positions), with a width of 17.5 mm and a light gray color.
The ME MAX 17.5 2-2 KMGY is a compact DIN‑rail terminal block designed for reliable wiring connections. The leaflet lists its general characteristics, housing material, colour, and the number of positions available.
Technical details include exact dimensions, weight, inflammability class, and a list of compatible accessories such as bus connectors, cover caps, and custom PCB kits. Contact information for Phoenix Contact and ordering references are also provided.
| Housing material | PA 6.6 |
|---|---|
| Color | gray |
| Length | 99 mm |
| Constructional height | 114.5 mm |
| Width | 17.5 mm |
| Number of positions | 12 |
| Inflammability class | UL 94 V0 |
| Weight per piece | 0.0594 kg |
| RoHS compliance date (Germany) | 12/02/2005 |
The housing is made from PA 6.6 plastic.
It provides 12 terminal positions.
Yes, it has been RoHS‑compliant in Germany since 12/02/2005.
The terminal block is gray.
