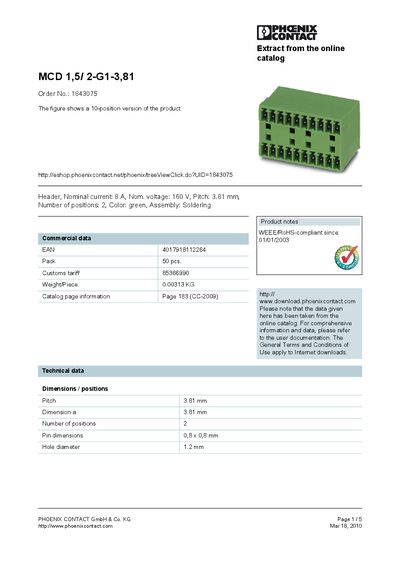

This document describes the features and characteristics of the MCD 1,5/ 2-G1-3,81 product manufactured by PHOENIX CONTACT GmbH & Co. KG. The product is a 10-position connector with a nominal current of 8A, nominal voltage of 160V, green color, and can be installed through soldering.
The MCD 1,5/2-G1-3,81 is a green, 2‑position terminal block designed for soldering or screw connections. It is rated for 8 A nominal current and 160 V nominal voltage, with a 3.81 mm pitch and compact dimensions.
The document lists detailed technical specifications, including pin dimensions, hole size, weight, and certification marks, as well as compatible accessories such as plugs, adapters, and marker cards. Diagrams and a drilling plan are also provided for installation.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 2 |
| Pin dimensions | 0.8 × 0.8 mm |
| Hole diameter | 1.2 mm |
| Weight per piece | 0.00313 kg |
| Color | green |
| Assembly | Soldering |
| EAN | 4017918112264 |
It is rated for 8 A nominal current.
The pitch is 3.81 mm.
It has 2 positions.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
