The product is the GMSTB 2,5/ 8-ST-7,62 connector from the German company PHOENIX CONTACT. It has a rated current of 12A, a rated voltage of 400V, a thread of M3, and a green color. The connection type is screw connection.
The GMSTB 2,5/8-ST-7,62 is an 8‑position screw‑connection terminal block from Phoenix Contact. It is rated for 12 A nominal current and 400 V nominal voltage, with a 7.62 mm pitch and green housing.

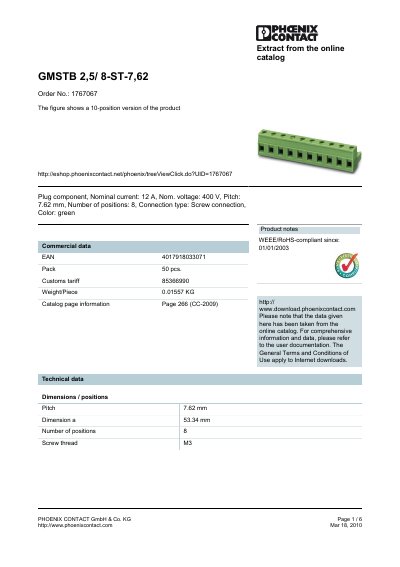

The datasheet provides dimensions, tightening torque, insulating material, conductor cross‑section ranges, surge voltage ratings, certifications and a list of accessories and tools for installation and maintenance.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 8 |
| Insulating material | PA |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
| Weight per piece | 0.01557 kg |
| Dimension a | 53.34 mm |
| Rated surge voltage | 6 kV |
| Certificates / Approvals | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 12 A.
The recommended tightening torque is between 0.5 Nm and 0.6 Nm.
The pitch of the terminal block is 7.62 mm.
It is certified according to CB, CSA, CUL, GOST, UL and VDE‑PZI standards.
