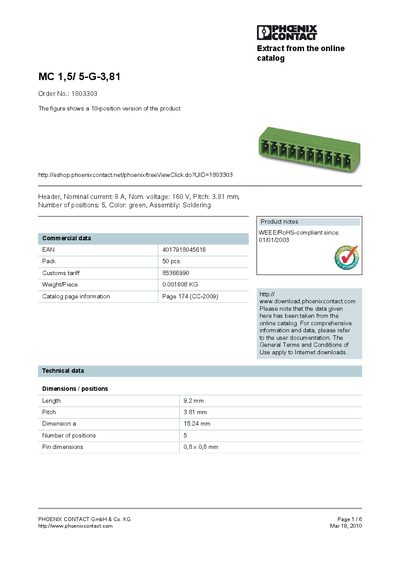

This document is about the product MC 1,5/ 5-G-3,81 from PHOENIX CONTACT GmbH & Co. KG. The product is a 10-position connector with a nominal current of 8A, nominal voltage of 160V, pitch of 3.81mm, and green color. It can be assembled through soldering.
The MC 1,5/5-G-3,81 is a 5‑position, green‑colored terminal block with a 3.81 mm pitch, designed for soldering assembly. It is rated for a nominal current of 8 A and a nominal voltage of 160 V. The product is RoHS‑compliant and supplied in packs of 50 pieces.
The document provides detailed technical specifications, dimensions, accessory part numbers, and drawing information for various plug and header variants. Contact and address details for Phoenix Contact are listed at the end of the handbook.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 5 |
| Length | 9.2 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.001608 kg |
| EAN | 4017918045616 |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
The pitch is 3.81 mm.
It has 5 positions.
The length is 9.2 mm.
