This document describes a PC terminal block with the following features: rated current 2A, rated voltage 250V, pin pitch 3.5mm, spring-cage connection, soldering assembly, conductor/PCB connection direction 45°, color green.

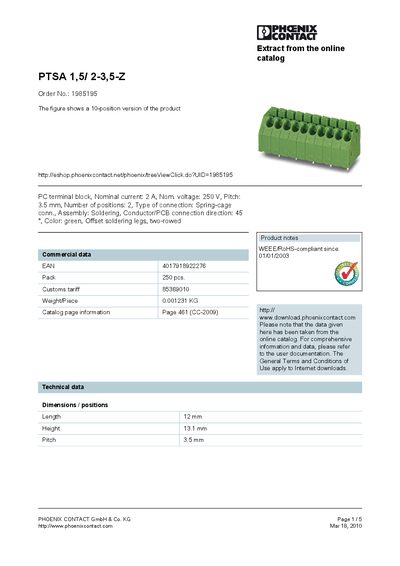

The PTSA 1,5/2-3,5-Z is a spring‑cage, two‑row terminal block from Phoenix Contact. It is designed for a nominal current of 2 A and a nominal voltage of 250 V, with a 3.5 mm pitch and options for 2‑ or 5‑position configurations.
The datasheet provides dimensional data (12 mm length, 13.1 mm height), electrical ratings, surge voltage limits, and certification information (CCA, CUL, UL, VDE‑PZI). It also includes a derating diagram for temperature effects and contact details for Phoenix Contact headquarters.
| Nominal voltage | 250 V |
|---|---|
| Pitch | 3.5 mm |
| Number of positions | 2 |
| Certifications | CCA, CUL, UL, VDE‑PZI |
The pitch is 3.5 mm.
It is certified according to CCA, CUL, UL, and VDE‑PZI standards.
