MDSTB 2,5/ 8-G1-5,08 is a connector product from PHOENIX CONTACT. The rated current is 10A, the rated voltage is 250V, the pitch is 5.08mm, there are 8 pins, the color is green, and it can be installed by soldering.

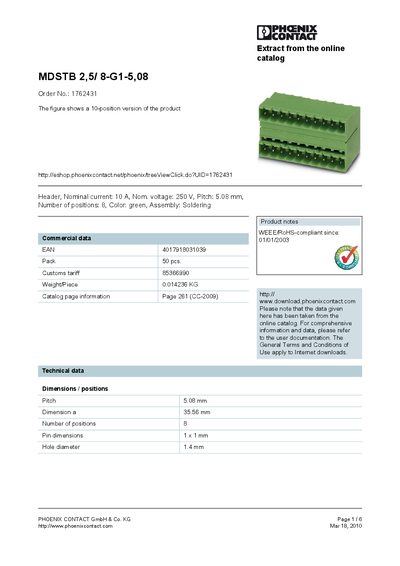

This handbook presents the technical specifications of the MDSTB 2,5/8‑G1‑5,08 terminal block, including nominal current, voltage, pitch, number of positions and material details. It also lists the available accessories, additional product variants and the applicable certifications.
The document includes dimensional drawings, weight information, and contact details for Phoenix Contact. It is intended for engineers and purchasers who need quick reference data for this terminal block series.
| Nominal current | 10 A per position |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 8 |
| Color | green |
| Assembly | Soldering |
| Weight per piece | 0.014236 kg |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The nominal current is 10 A per position.
The pitch is 5.08 mm.
It has 8 positions.
It is certified by CB, CSA, CUL, GOST, UL and VDE‑PZI.
