This product is a connector from phoenix contact. The model is spc 5/ 4-stcl-7,62. The rated current is 41 a, the rated voltage is 1000 v, the connection type is spring-cage connection and the color is green.
This document presents the SPC 5/ 4-STCL-7,62 spring‑cage connector from Phoenix Contact. It includes basic product information such as nominal current, voltage, pitch, and number of positions, as well as packaging and weight details.
Technical data sections list electrical ratings, surge voltage values, conductor cross‑section limits, and certification approvals (UL, CUL). Diagrams and dimension drawings are provided, along with contact information for Phoenix Contact.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 7.62 mm |
| Number of positions | 4 |
| Weight per piece | 0.021927 KG |
| EAN | 4046356175173 |
| Certification | UL, CUL |
The connector is rated for a nominal current of 41 A.

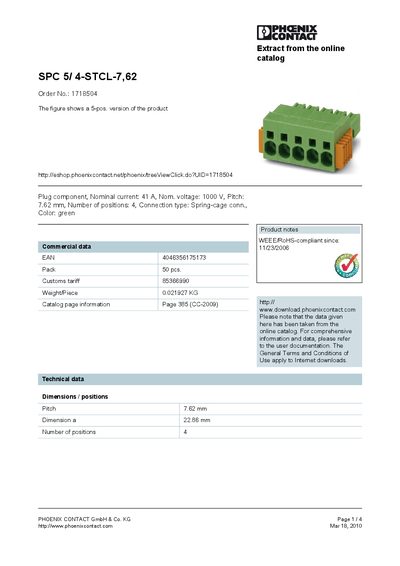

The standard version has four positions, though a five‑position version is also shown.
It is certified according to UL and CUL standards.
The pitch of the plug is 7.62 mm.
