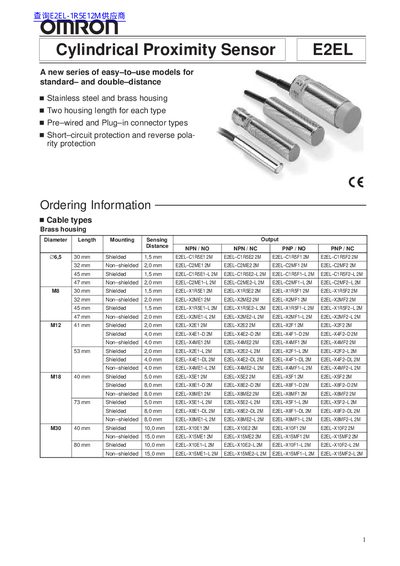

E2EL Cylindrical Proximity Sensor is a new series of easy-to-use models for standard- and double-distance, Stainless steel and brass housing, Two housing length for each type, Pre-wired and Plug-in connector types, Short-circuit protection and reverse polarity protection
The Omron E2EL series consists of cylindrical proximity sensors with stainless‑steel or brass housing. The sheet lists the available sensor types, dimensions, mounting options, and electrical characteristics for each model variant.
Key information includes operating voltage, supply voltage, current consumption, output type, protection features, environmental limits, and mechanical ratings. Wiring diagrams, plug types and connector pin arrangements are also provided for quick integration into control systems.
| Operating voltage | 10 to 35 VDC |
|---|---|
| Rated supply voltage | 24 VDC |
| Current consumption (max) | 15 mA at 24 VDC |
| Sensing object | Ferrous metals |
| Operating distance | 2.0 mm – 80 mm (model dependent) |
| Max load current | 200 mA |
| On‑state voltage drop | 2.5 VDC at 200 mA |
| Circuit protection | Reverse polarity, output short‑circuit |
| Indicator | Yellow LED |
| Ambient temperature range | -25 °C to 70 °C |
| Humidity range | 35 % to 95 % RH |
| Dielectric strength | 1500 VAC, 50/60 Hz for 1 min |
| EMC compliance | EN 60947‑5‑2 |
| Enclosure IP rating | IP67 |
| Vibration resistance | 10‑70 Hz, 1.5 mm double amplitude, 1 h each axis |
| Shock resistance | 300 m/s² (≈30 g) for 6 impacts per axis |
The sensors can handle a maximum load current of 200 mA.
They operate from 10 VDC up to 35 VDC.
The output is protected against reverse polarity and short‑circuit conditions.
The housing meets IP67 protection.
