G5Q power relay is a small 1a/1c contact relay with high switching performance and can be used for various loads. A small product that can ensure an 8kV withstand voltage (coil-contact).
The G5Q series are small‑size power relays with a 1‑pole 10 A switching capacity and high switching performance for various loads. They offer coil voltage options such as DC5 V, DC12 V and DC24 V, and are rated for up to 8 kV impulse voltage between coil and contacts.

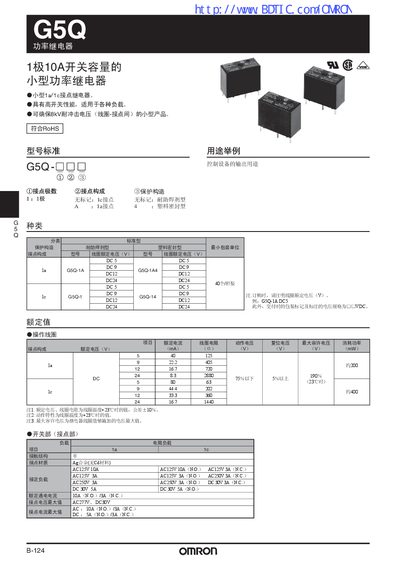

The manual provides electrical and mechanical ratings, environmental limits (‑40 °C to +85 °C), dimensions, and certification data (UL, CSA, IEC). It also includes wiring diagrams, contact configurations, and recommended testing procedures for service and repair. This manual is written in Chinese.
| Maximum switching current | 10 A (1‑pole) |
|---|---|
| Coil voltage options | DC5 V, DC12 V, DC24 V |
| Contact resistance | < 100 mΩ |
| Insulation resistance | ≥ 1 000 MΩ |
| Operating temperature range | -40 °C to +85 °C |
| Mechanical life | ≥ 10 million operations |
| Maximum contact voltage | AC 277 V, DC 30 V |
| Weight | ≈ 6.5 g |
The G5Q relay can switch up to 10 A on a single pole.
Coil voltages are offered in DC5 V, DC12 V and DC24 V versions.
It is rated for ambient temperatures from –40 °C to +85 °C.
The relay is rated for at least 10 million switching cycles.
