G5V-1 miniature relay detailed data, including maximum permissible voltage, coil rated voltage, maximum switching capacity, ambient temperature and action·reset voltage, contact reliability test, dial pulse test, life curve, ambient temperature and maximum permissible voltage

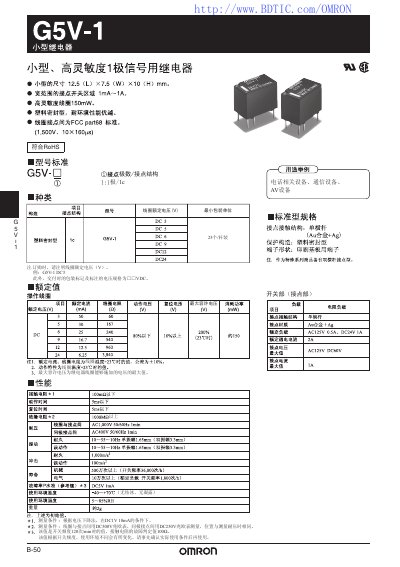

The G5V-1 is a compact, high‑sensitivity single‑pole relay with dimensions 12.5 mm (L) × 7.5 mm (W) × 10 mm (H) and a contact rating of 1 mA – 1 A. It features a 150 mW coil, plastic sealed construction, and complies with FCC part 68 (1500 V, 10 × 160 µs). The manual includes mechanical and electrical characteristics, environmental limits, high‑frequency performance, and testing procedures.
Key specifications such as contact resistance (≤ 100 mΩ), insulation resistance (≥ 1000 MΩ), operating temperature range (‑40 °C ~ + 70 °C), weight (~2 g), and durability (≥ 100 k cycles electrical, ≥ 1 M cycles mechanical) are listed. Certification information (UL No.E41515, CSA No.LR31928) and recommended handling, cleaning, and safety notes are also provided. This manual is written in Chinese.
| Dimensions (L×W×H) | 12.5 mm × 7.5 mm × 10 mm |
|---|---|
| Contact rating | 1 mA – 1 A |
| Maximum coil voltage | 1500 V |
| Contact resistance | ≤ 100 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Electrical life (cycles) | ≥ 100 k cycles |
| Mechanical life (cycles) | ≥ 1 M cycles |
| Switching frequency | 36 000 cycles/min |
The contacts are rated for 1 mA up to 1 A.
Yes, it is certified to UL (File No. E41515) and CSA (File No. LR31928).
