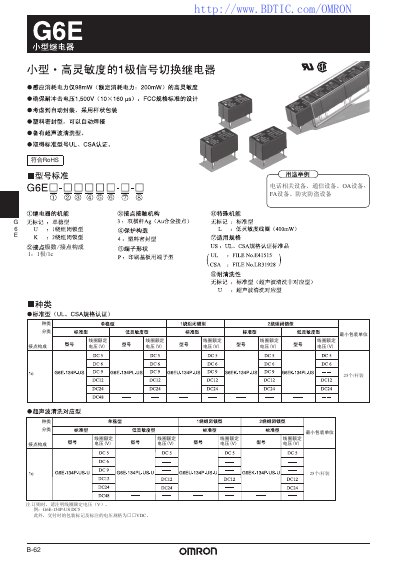

This document describes the features and characteristics of the OMRON G6E series relays that comply with RoHS standards, including pole/contacts configuration, coil rated voltage, and minimum packaging unit. The G6E series relays are widely used in telephone-related equipment, communication equipment, OA equipment, FA equipment, disaster prevention and anti-theft equipment.
This manual provides detailed technical data for Omron G6E series small relays, including electrical ratings, mechanical characteristics, and certification information. It lists coil voltage options, contact ratings, power consumption, and environmental limits.
Installation instructions cover coil polarity, terminal spacing, wiring diagrams, and recommendations for ultrasonic cleaning and soldering. Test procedures and reliability data are also included to aid service technicians. This manual is written in Chinese.
| Coil power consumption (low‑sensitivity type) | 98 mW |
|---|---|
| Impact voltage (with 10 × 160 ns impulse) | 1 500 V |
| Contact rating (resistive load) | AC125 V 0.4 A, AC125 V 0.2 A |
| Contact rating (DC load) | DC30 V 2 A, DC30 V 1 A |
| Maximum contact voltage | AC250 V, DC220 V |
| Maximum contact current | 3 A |
| Insulation resistance | ≥1 000 MΩ (500 V test) |
| Contact resistance (typical) | <50 mΩ |
| Weight | ≈2.7 g |
The low‑sensitivity type consumes 98 mW of power.
The coil polarity (+, –) must be observed when mounting the relay on the PCB.
