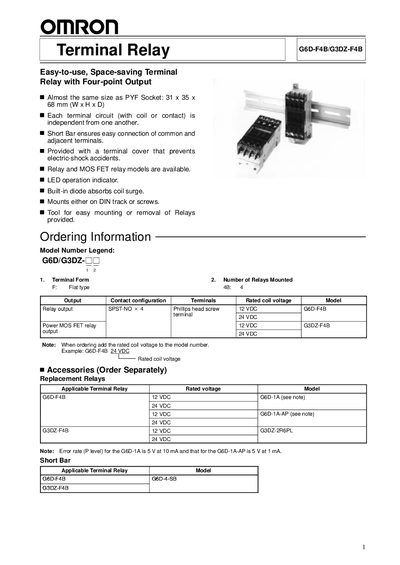

G6D-F4B/G3DZ-F4B Four-point output terminal relay, small and easy to use. Same size as PYF socket. 31 x 35 x 68 mm (W x H x D). Each terminal circuit (with coil or contact) is independent from one another. Short Bar ensures easy connection of common and adjacent terminals. Provided with a terminal cover that prevents electric-shock accidents. Available in relay and MOS FET relay models. LED operation indicator. Built-in diode absorbs coil surge. Mounts either on DIN track or screws. Tool for easy mounting or removal of Relays provided.
The G6D-F4B and G3DZ-F4B terminal relays are space‑saving devices that provide four independent SPST‑NO contacts. Each relay includes a short bar for easy connection, an LED operation indicator, and a built‑in diode to absorb coil surge. They can be mounted on a DIN track or with screws and are supplied with a terminal cover.
The handbook provides full electrical ratings, mechanical characteristics, installation dimensions, wiring precautions, torque specifications, and environmental limits. It also lists accessories, replacement procedures, and handling guidelines to ensure reliable operation in industrial automation applications.
