G6K Surface Mount Relay is a high-performance relay introduced by OMRON. It features ultra-small, low height, and ultra-light weight to meet the requirements of high-density packaging. The relay adopts a unique terminal structure, with good welding performance, and the coil contact withstands AC 1,500V and withstands an impact voltage of 1.5kV 10×160 µs. It also has a Y series product with an impact voltage of up to 2.5kV 2×10 µs.

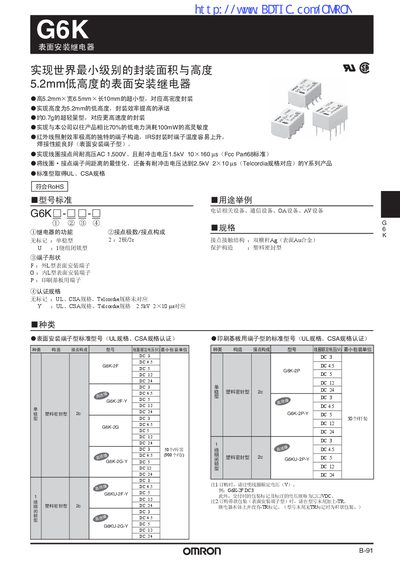

This service manual provides detailed information for Omron G6K surface‑mount relays, including electrical and mechanical specifications, performance data, and recommended handling procedures. It is intended for service technicians and design engineers who need to integrate or maintain these relays in equipment.
The document also describes packaging options, soldering profiles, environmental limits, and certification compliance (UL, CSA, Telcordia). Safety notes and best‑practice recommendations are included to ensure reliable operation over the relay’s lifetime. This manual is written in Chinese.
| Contact rating (max voltage) | AC 1,500 V |
|---|---|
| Electrical life | ≥ 100,000 cycles |
| Weight | ≈ 0.7 g |
| Operating temperature range | -40 °C to +70 °C |
| Operating humidity range | 5 % to 85 % RH |
The contacts are rated for up to 1,500 V AC (10 × 160 Hz).
